Tail Light Wire Color Code Guide: Easy Vehicle Wiring Reference

When it comes to vehicle maintenance, one common task that both novice and experienced DIY enthusiasts encounter is the replacement or repair of tail lights. Have you ever found yourself peering into the labyrinth of wires and feeling a touch of trepidation? Understanding tail light wire colour codes can be an unexpected puzzle, but fear not! This guide aims to illuminate the complexities of vehicle wiring, making the task an achievable feat.

Tail lights are crucial for road safety. They signal to other drivers when you’re stopping, reversing, or indicating a turn. Therefore, ensuring these lights function correctly is imperative. But what happens when one light goes out, or you want to replace them with a sleek new style? Enter the tail light wire colour code guide, your trusty ally in navigating the colourful world of vehicle wiring.

Understanding the Basics of Vehicle Wiring

Before diving into the specifics of wire colour codes, it’s essential to have a foundational understanding of vehicle wiring systems. Modern vehicles utilise complex electrical networks, with each wire assigned a specific function. Essentially, wires transport electrical current from the battery to various components, including tail lights. Familiarising yourself with these systems is the first step toward effective and safe repairs.

Common Tail Light Functions

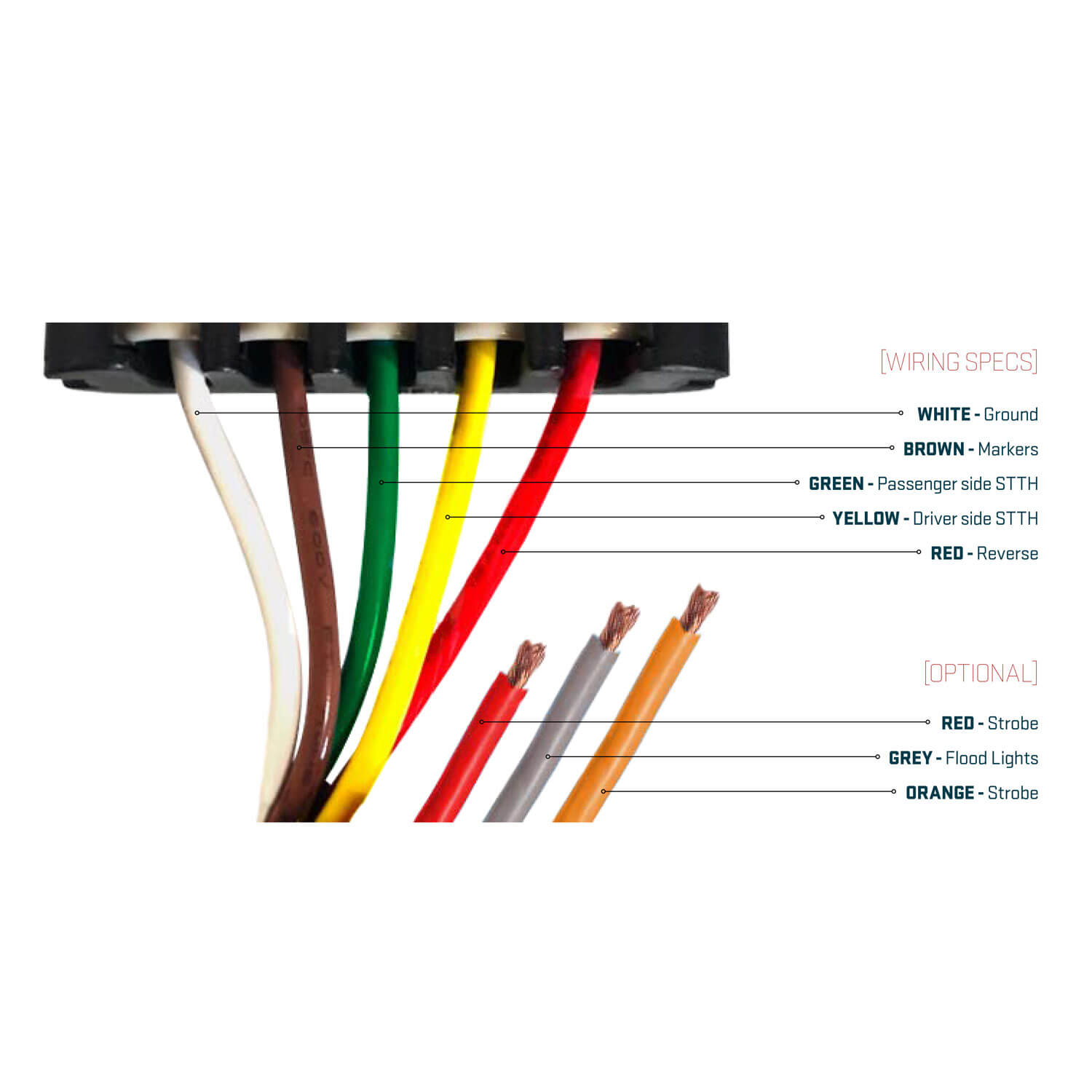

Typically, tail lights consist of multiple functions: running lights, brake lights, and turn signals. Each function can have its corresponding wire colour. Here’s a brief rundown:

• Running Lights: These lights are continuously on whenever the vehicle is in operation. They usually have a specific wire colour associated with them, often like brown or yellow.
• Brake Lights: Activated when the brake pedal is pressed, these lights alert other drivers when you’re slowing down. The wire commonly associated with brake lights might be red.
• Turn Signals: Indicating intended direction, left or right, the wire colours for turn signals often vary. For instance, green may represent the left turn signal, while yellow is often assigned to the right.

Decoding the Colour Codes

Diving into the wire colours specific to your vehicle is paramount. While colour codes may vary between manufacturers, some patterns tend to emerge. For example, Dodge truck models often adhere to a consistent colour scheme. The challenge lies in knowing which colours correspond to which functions across different makes and models.

Consider the 2003 Dodge Ram as an illustrative example:

• Running Lights: Brown
• Brake Lights: Red
• Left Turn Signal: Green
• Right Turn Signal: Yellow

With this knowledge, one could efficiently replace a tail light or even install aftermarket lighting with a modicum of confidence. However, it’s vital to consult a specific wiring diagram for your vehicle model, as discrepancies may arise.

Importance of Accuracy

Accuracy is of utmost importance when dealing with vehicle wires. Miswiring can lead to severe safety issues, including electrical shorts or failure of crucial lighting systems. Take a moment to ponder the potential consequences of connecting a wire intended for another function. It’s akin to mixing up your spices in recipe preparation—one wrong move could ruin the entire dish.

Moreover, ensuring that your connections are secure is integral. Loose connections can lead to erratic light behaviour, not to mention a frustrating experience for the driver behind you when you signal left but the right turn light illuminates instead!

Tools for the Job

Having the right tools at your disposal can significantly ease the process of tail light installation or repair. Common tools include:

• Wire Strippers: Essential for stripping the insulation off wires without damaging the metal core.
• Soldering Iron: For securely joining wires together, providing a robust connection.
• Heat Shrink Tubing: To protect soldered connections and prevent fraying.
• Electrical Tape: A convenient way to insulate and secure wire connections.

Equipping yourself with these tools will not only facilitate a better outcome but will also instil a sense of accomplishment once the job is completed. What’s better than a well-functioning tail light after all that effort?

Final Thoughts

Navigating the world of tail light wiring might seem daunting at first glance, but with the right reference points, a bit of patience, and a committed attitude, you can transform a potential headache into a straightforward task. Remember, the game of codes and colours doesn’t have to be a guessing game. Replace uncertainty with knowledge, and watch as your DIY capabilities flourish.

So, the next time a tail light flickers or fails, instead of approaching it with hesitation, embrace the challenge! With this guide at your disposal, you’re now equipped to tackle the wiring puzzle and illuminate the road ahead.
