Leak Testing Equipment for Electronic Components: Methods and Tools

In the realm of electronic components, the effectiveness and durability of a product often rest on the integrity of its construction. Leak testing represents a pivotal element in ensuring that electronic devices function seamlessly and reliably. This article delves into the various methods and tools utilised in leak testing, addressing the underlying significance of each technique, their operational modalities, and the recent evolutions in the field.

Leak testing equipment serves as a critical safeguard against failures that may arise due to unintentional breaches in seals, joints, or enclosures. Whether in consumer electronics, sophisticated medical devices, or defensive missile systems, the necessity for robust leak detection has never been more paramount. A minor leak may culminate not only in operational malfunctions but also in significant financial implications, underscoring the need for reliable testing methodologies.

One of the most prevalent methods for leak detection is the **helium leak testing** technique. This approach exploits helium’s unique properties as a small and low molecular weight gas. Helium is non-toxic, inert, and possesses an exceptional ability to penetrate microscopic fissures. During helium leak testing, the component is placed in a vacuum chamber, while helium is introduced. The presence of helium in the test environment indicates a leak, pinpointing the breach accurately. This method is particularly favoured in high-stakes applications, as it provides rapid detection and quantification of leaks, often in the order of one part per billion.

Furthermore, **mass spectrometry** is employed in conjunction with helium leak testing to augment the credibility of results. Here, a mass spectrometer detects the helium ions and assists in distinguishing the leak’s origin and size. By tracing the gas’s isotopic fingerprint, additional insights into the leakage pathway can be unearthed, informing remediation efforts.

Another widely employed method is **pressure decay testing**. This technique assesses the integrity of a sealed device by observing the rate of pressure change within a system over time. When a sealed container experiences a drop in pressure, it indicates the existence of a leak. While pressure decay testing is generally applicable to larger leaks, it also serves as a quick diagnostic tool for larger electronic assemblies. However, the technique may exude some limitations concerning smaller leaks, necessitating more sophisticated methods for thorough assessments.

In recent technological advancements, **ultrasonic leak detection** has garnered attention for its efficacy. This method employs ultrasonic frequency sound waves to identify leaks, particularly in pressurised systems. Ultrasonic detectors can capture the sounds generated by escaping gas, rendering this technique useful in environments rife with background noise. It is especially advantageous for complex electronic assemblies that might be unobtrusively sealed, making traditional detection methods impractical.

The significance of these methods extends beyond mere utility; they cater to an inquisitive nature that seeks precision and excellence in designs. This quest for understanding embodies the intersection of science and craftsmanship, appealing to specialised industries involved in the development of highly sensitive electronic equipment. In the medical field, for instance, where the stakes are unquestionably grave, the assurance of a leak-free device can translate into the difference between life and death.

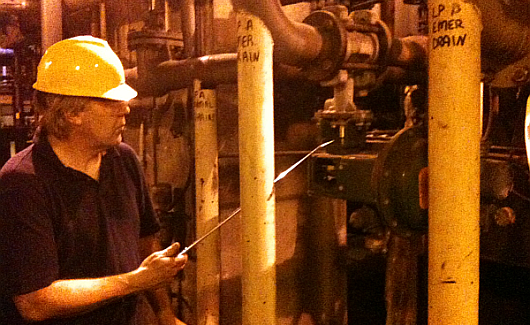

Beyond the methods themselves, an appreciation exists for the **tools integral to leak detection**. Devices such as handheld leak detectors facilitate on-site assessments, providing flexibility and responsiveness. These tools often use a combination of technologies, potentially merging infrared sensors with acoustic detectors to optimise leak detection capabilities. Such devices have levelled the playing field for manufacturers, allowing for more thorough testing without the inherent costs associated with extensive testing facilities.

Additionally, vacuum systems and pressure testing rigs are indispensable for conducting controlled testing environments. These systems can be calibrated to specific conditions, which maximises the accuracy and reliability of the testing protocol. Investing in advanced software for data analysis further enhances the effectiveness of leak detection, enabling real-time data processing and potentially predictive analytics for forecasting device performance over time.

As industries continue to evolve, the integration of **automated leak testing systems** is on the rise. Robotics and artificial intelligence facilitate high-volume production environments, wherein complex electronic components require fast and reliable leak detection. These advancements promise to dramatically decrease human error, increase throughput, and incorporate real-time monitoring capabilities. The future of leak testing equipment not only lies in refining existing methodologies but also in harmonising them with emerging technologies for seamless integration into manufacturing workflows.

Ultimately, the domain of leak testing encompasses a fascinating blend of methodology, science, and artistry. It conjures an image of precision engineering intertwined with the innate desire for perfection in electronic design. As technology progresses, the persistent pursuit of impeccable quality in electronics will energise the development of ever-more sophisticated leak testing equipment and techniques, ensuring that each component not only meets but exceeds stringent quality benchmarks. The commitment to excellence in leak detection not only fuels industry standards, but also paves the way for innovation that can lead to revolutionary advancements across multiple sectors.

FAQ

What are the main methods of leak testing for electronic components?

The main methods include helium leak testing, mass spectrometry, pressure decay testing, and ultrasonic leak detection.

Why is leak testing important in electronic devices?

Leak testing ensures the integrity of electronic components, preventing operational malfunctions and potentially significant financial losses.

What tools are used for leak detection?

Common tools include handheld leak detectors, vacuum systems, pressure testing rigs, and advanced software for data analysis.
